東力泰企業有限公司

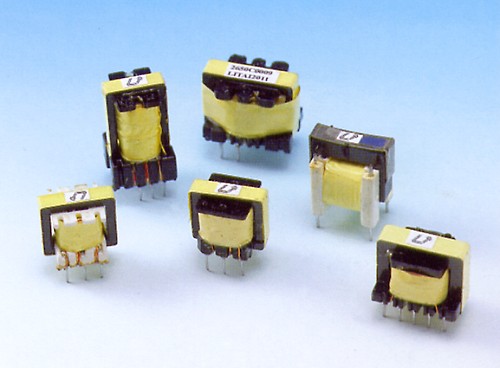

Driver Transformers

FEATURES︰
Designed to regulate high and low voltage fluctuation. compatible with eccentric circuits.

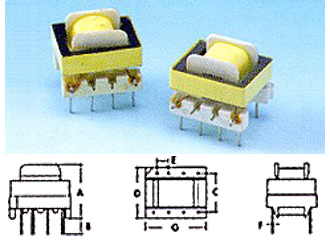

MODEL	A max	B±1.0	C±0.3	Dmax	E±0.3	F±0.3	G max
EE-10V-8P	12.1	4.0	8.0	11.1	2.5	0.5	11.1
EE12.5V-10P	10.6	4.0	7.5	14.6	2.5	0.6	13.6
EE13V-10P	13.6	4.0	8.5	13.1	2.5	0.6	14.1
EE16V-6P	15.1	4.0	9.0	13.6	3.0	0.6	17.6
EE16V-8P	15.6	4.0	10.2	15.1	3.8	0.6	17.1
EE16V-10P	15.6	4.0	11.0	15.1	3.3	0.6	17.6
EEL16V-10P	33.1	4.0	12.0	16.6	3.5	0.6	18.1
EE19V-6P	20.1	4.0	11.5	16.1	4.7	0.7	20.1
EE19V-6P	20.1	4.0	12.7	17.6	5.0	0.7	20.6
EE19V-8P	19.1	4.0	10.0	16.1	5.0	0.7	20.6
EE19V-10P	19.1	4.0	13.0	16.6	3.9	0.7	20.6
EEL19V-10P	33.1	4.0	15.0	21.1	3.8	0.8	23.1
EE22V-8P	32.1	4.0	12.5	18.1	5.0	0.8	24.1
EE22V-8P	21.1	4.0	12.5	17.6	5.0	0.8	23.1
EE22V-10P	22.1	4.0	10.0	17.1	4.0	0.8	25.1
EE22V-10P	22.1	4.0	12.0	17.1	4.0	0.8	25.1
EE16H-10P	16.1	4.0	12.0	15.6	35+2.7	0.60	17.1
EEL16H-9P	18.6	4.0	23.5	31.1	5.0	0.60	21.6
EE19H-10PI	19.1	4.0	12.0	15.6	3.5+2.7	0.78	18.6
EI22H-9P	17.6	4.0	17.5	24.6	5.0+3.5	0.70	21.6

Please Note: These are only a sample of the transformers LiTai currently manufactyres. We gladly build to customer specification.
