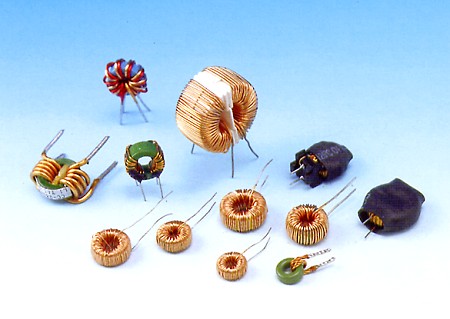

Toroidal Coils

APPLICATIONS:

LiTai's Toroidal Coils are designed to minimize and absorb noise, and they to be used in speed control equipment or in applications where noise intrusion is a factor: CPUs, Communications Equipment, Computer Monitors, Televisions, VCRs and other electronics components.


FEATURES

Manufactured to rigorous Quality control standards to ensure reliability and capability. Excellent absorption qualities.

EMI/PRF elimination. Compliant with the standards of FCC, CISPR, CDE, FTZ, and VCCT.


Configuration
Symbal
A(Max)B(Max)Dimensions C±2D(Max)
T-13 13.1 8.1 12 2.1
T-15 15.1 8.1 12 2.1
T-16 16.1 9.1 12 2.1
T-18 18.1 11.1 12 2.1
T-18B 18.1 13.1 12 2.1
T-22 22.1 11.1 12 2.1
T-24 24.1 11.1 12 2.1
T-24B 24.1 44.1 12 2.1
T-26 26.1 13.1 12 2.1
T-26B 26.1 16.1 12 2.1
T-29 29.1 16.1 12 2.1
T-33 33.1 18.1 12 2.1
T-33B 33.1 21.1 12 2.1
T-40 40.1 18.1 12 2.1
T-40B 40.1 21.1 12 2.1
